manufacturer
Bell
configuration
Utility
condition
Used
year
1992
time
26353
helicopter location
United States
serial number
51249
registration number
N53702
listing ID
HT19624
Description

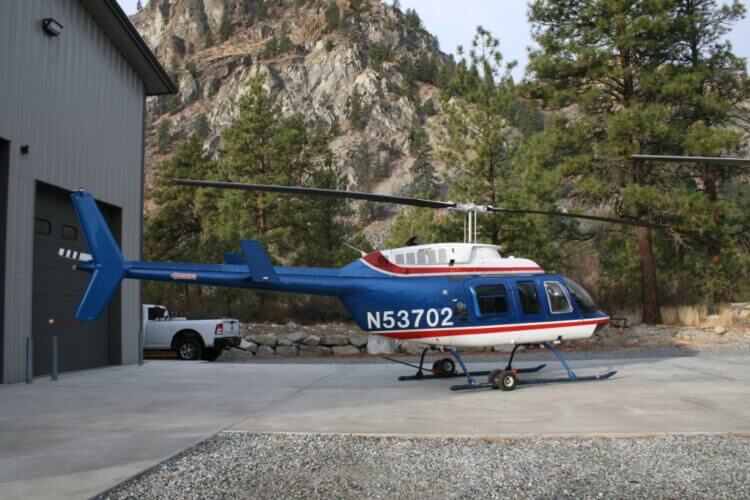

1992 BELL 206L-3 LONG RANGER
equipment
- High Skids
- Rotor Brake
- Facet External Oil Filter
- Bleed Air Heater System
- Van Horn Tail Rotor Blades
- Cargo Hook w/2000 Pound
- Particle Separator Engine Air Induction System
- Fire Detection System
- Lightweight Emergency Flotation Landing Gear
- External Hoist
- Approved for Increased Power Operations
- AAI Skid Tubes
- Concorde RG-244 Lead Acid Battery
- Kaflex Drive Shaft
- AAI Locking Fuel Caps
- Simplex 7600 Spray System
- Dart Cross Tubes
- Aerspace Filtration System
- Elastomeric Tail Rotor Bearing
- Aircom Defroster System
- Composite Engine Cowling Doors
- Left Boost Pump Alert
- Precise Flight Pulse Lights
- uAvionix Tail Beacon
- Whelen LED Position and Anti-Collision Lights
- Dart Cargo Mirror
- Maintenance Steps w/Step Handle
- Litton TOT Gauge
- Tail Rotor Gearbox Sight Glass
- BHT Right Side Bubble Window
- Paravion Technology Monitor Mount
- Chin Bubble
- Rubber Mounted Chin Window
- Nightsun SX-16C Searchlight
- Rubber Mounted Passenger Windows
- Snow Deflector
- Paravion Equipment Shelf
- Rear View Mirror
- Right Side Skylight
- Left Side Crew Window
- Baggage Extender
engine 1
ENGINE: ALLISON 250-C30P, Serial Number CAE-895660
- Engine Time: 6311 Hours SNEW
- Engine Cycles: 5717 Cycles SNEW
- Turbine Assembly: 6053 Hours SNEW / 1742 Hours Remaining to Overhaul
- Compressor: 4588 Hours SNEW / 277 Hours Remaining to Overhaul
- Impeller: 4588 Hours SNEW / 8688 Hours Remaining to Retirement
- Impeller: 19283 Cycles Remaining
- Gearbox: 4588 Hours SNEW / Replace On Condition
- First Stage Wheel: 6053 Hours SNEW / 1767 Hours Remaining to Retirement
- First Stage Wheel: 2912 Cycles Remaining
- Second Stage Wheel: 6053 Hours SNEW / 1767 Hours Remaining to Retirement
- Second Stage Wheel: 2912 Cycles Remaining
- Third Stage Wheel: 6053 Hours SNEW / 2363 Hours Remaining to Retirement
- Third Stage Wheel: 4733 Cycles Remaining
- Fourth Stage Wheel: 6053 Hours SNEW / 2363 Hours Remaining to Retirement
- Fourth Stage Wheel: 4733 Cycles Remaining
- Fuel Control Unit: 4588 Hours SNEW / 95 Hours Remaining to Overhaul
- Governor: 4939 Hours Since New / 628 Hours Remaining to Overhaul
- Fuel Pump: 4588 Hours Since New / 1199 Hours Remaining to Overhaul
- Fuel Nozzles: 5957 Hours SNEW / 1646 Hours Remaining to Overhaul
- Bleed Valve: 5325 Hours SNEW / 524 Hours Remaining to Overhaul
